Control4 C4-DIN-8APD-E
Control4® DIN-Rail 8-Channel Adaptive Phase Dimmer
Suivi personnalisé
Après commande, nous vous confirmons par e-mail votre achat ainsi que les modalités de livraison et de paiement selon nos stocks disponibles.
Conditions générales
Tarifs professionnels
Bénéficiez de remises spéciales sur nos produits
Produits alternatifs
Vous aimerez peut-être aussi…
Produits accessoires

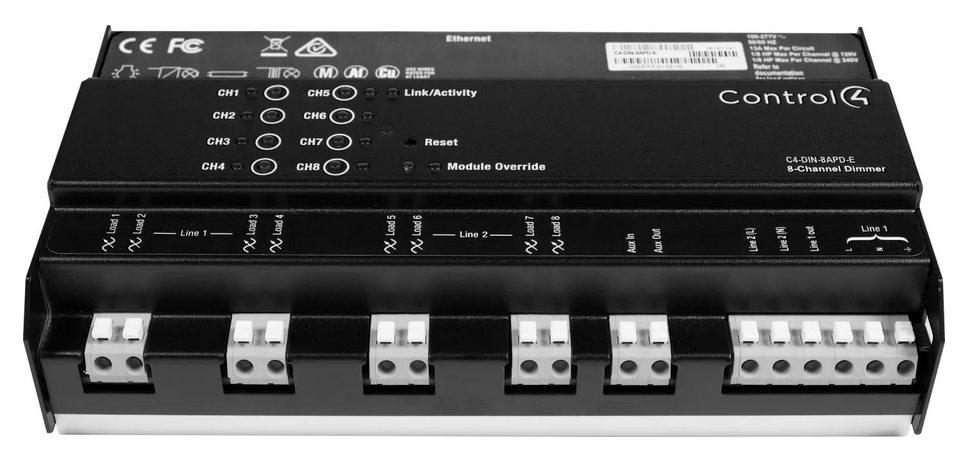

- Controls up to eight loads and supports a variety of load types
- Each channel can be set to different dimming modes including Switch mode, Forward Phase mode, Reverse Phase mode, and Autodetect mode
- Channel buttons allow for toggling on/off or ramping up/down a load
- Channel Status LEDs indicate whether a load is on, off, or in short-circuit fault
- Module Override button allows toggling between the module override scene and all channels off or setting the module override scene to current channel levels
- Module Status LED indicates if module power is on with normal operation, off, or in thermal overload
- Link/Activity LED indicates system link status, communication activity, or firmware update status
- Reset button can be used for factory default or network configuration settings
- Auxiliary override connection allows a standard line-voltage toggle switch to control the attached lights before the control system is installed or in case the controller malfunctions
- Module can be installed in either a Control4 5-Slot or 2-Slot Panel or in a third-party DIN-Rail Panel
- California Title 20 compliant (see ctrl4.co/title20 for more information on Title 20 / Title 24 compliance)
Documents
Infos techniques
| Marques | |
|---|---|
| Type d'éclairage |
